Tiny tapering warms up light-matter interactions

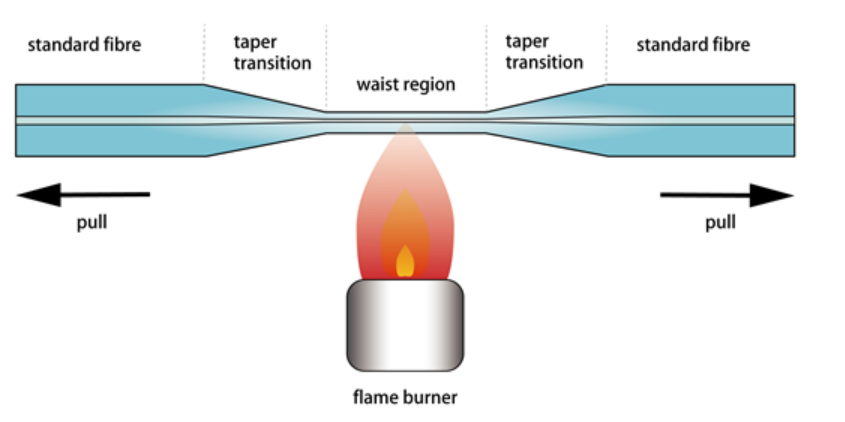

The fibre taper directly drawn from a standard optical fibre has a biconical geometry comprising standard fibre regions, a thinned waist region and transition regions connecting the former two parts.

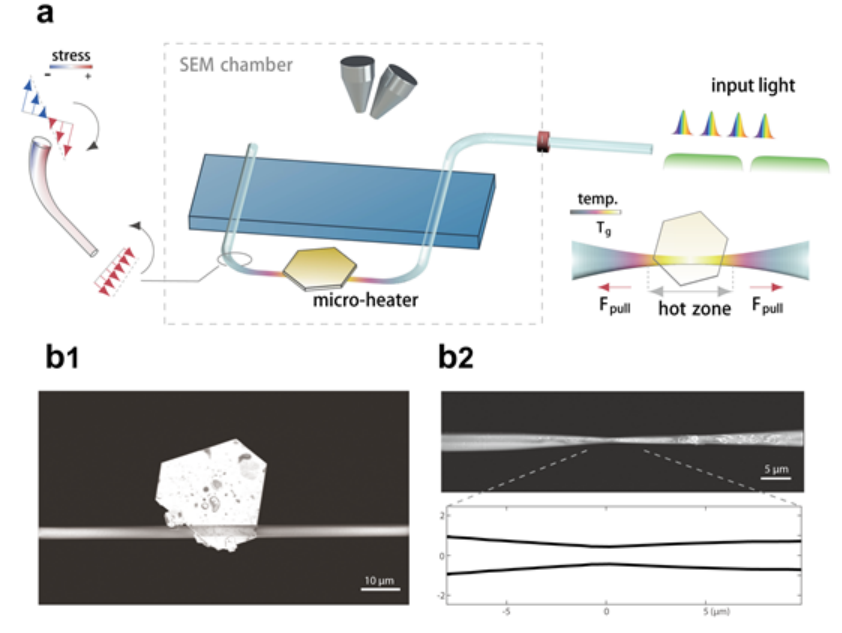

a) Schematic of the experimental set-up, showing a pre-tapered fibre with a metal plate attached to it inside an SEM chamber. The modulated light is guided into the fibre via an optical-through-vacuum connector. The light-thermal effects are monitored in

FAYETTEVILLE, GA, USA, August 8, 2023/ — Micro-nano fibres with wavelength-scale diameters and tapered geometries are excellent platforms for studying light-matter interactions. A novel fibre-tapering technique is reported, compactly combining plasmonic micro-heaters and deformed optical fibres. The system enabled a transfer to a scanning electron microscope for in-situ monitoring of the tapering process. The dynamics of “heat and pull” was directly visualized with nanometre precision in real-time, exemplifying in-situ observations of micro and nanoscale light-matter interactions.

Optical micro and nanofibres (MNFs) have extensive applications in nonlinearity generation, near-field optics, quantum optics, and miniaturized sensing. Although MNFs have fostered the development of various disciplines, there have been few studies on the topic until the convenient fabrication of low-loss MNFs was made possible.

In the standard and most conventional methods of drawing out silica nanowires, the fibre material would be first softened by local heating and then thinned and elongated by applying a pulling force. The decreased diameter of fabricated MNFs can approach the subwavelength dimension. It would thus support modal fields with strong evanescent waves tunnelling through the silica material into the surrounding medium. Easy fabrication, low loss, light mass, and pronounced evanescent waves have made MNFs one of the best candidates for studying light-matter interactions.

Many efforts have been devoted to improving the fabrication units to produce MNFs of desired quality. The most common taper-drawing machine contains a flame and two translation stages. They apply the pulling force to the fibre by stretching its fixed ends in opposite directions. According to the hot-zone theory, the specific shape of MNFs is determined by the length variation of the heated region relative to the net elongation of the fibre.

MNFs with designed taper geometries can be prepared by adopting the “flame brush” technique to manipulate the hot zone. However, using flames to heat the fibre suffers from air fluctuations and the inertia of the moving burner. Electrical heaters were introduced for programmable and steady temperature distribution.

Alternatively, CO2 lasers can be turbulence-free heat sources that generate heat through material absorption. Their function requires complex optical alignment and high input light power. The substitution of translation stages can take multiple forms as long as the pulling force can be exerted along the fibre. Although the techniques in principle provide a myriad of viable fabrication configurations, each specified for certain operational conditions, they are explored only within the most explicit scheme of “heat and pull”.

In a new paper published in Light: Advanced Manufacturing, the first author Qiannan Jia and co-workers have developed a unique fiber-tapering technique that combines plasmonic heaters and deformed optical fibres

The researchers demonstrated a unique technique for MNF fabrication that excluded using any of the aforementioned bulky fabrication components. Pieces of metal plates were introduced to serve as portable micro-sized heaters, which absorbed fibre-delivered light efficiently through plasmonic effects. The light power required in this step was only a few microwatts. The tensile stress of the macroscopically bent fibres provided the pulling force without the use of translation stages.

The researchers emphasized that the proposed plate-fibre system was self-sufficient in heat and pull. Implementing the process required no conventional bulky accessories, such as the translation stage, flame burner, or free-space optical components. Owing to its small volume, the plate–fibre system could be transferred into a scanning electron microscope (SEM) chamber. The dynamic tapering process was visualized with nanometre precision for the first time.



Funding information

This research received funding from the National Natural Science Foundation of China.


About Light: Advanced Manufacturing (LAM)

Light: Advanced Manufacturing (LAM) is a new, highly selective, open-access, and free of charge international sister journal of the Nature Journal Light: Science & Applications. The journal aims to publish innovative research in all modern areas of preferred light-based manufacturing, including fundamental and applied research and industrial innovations.
